PC 16-02 | Push in Fitting - Hex Male Straight Connector | 16mm O.D Tubing, R, PT, BSPT 1/4 Male Thread

PC 16-02 pneumatic push in fitting (push to connect fitting) hex male straight connector is designed to connect 16mm O.D tubing to R, PT, BSPT 1/4 female threaded pneumatic system in a straight configuration. 16mm O.D tubing to R, PT, BSPT 1/4 male connector push in fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in confined spaces. PC 16-02 male straight has pre-applied Teflon thread sealant. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.

Push-in Tubing O.D: 16mm
Thread Size: R, PT, BSPT 1/4
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Thread Material: Nickle Plated Brass
Thread Sealing: Teflon
Seal, O-ring: NBR
Working Pressure: 0—1.0MPa | 0—150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0—60°C | 32—140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC

Price: ￡1.00

Request for Quotation

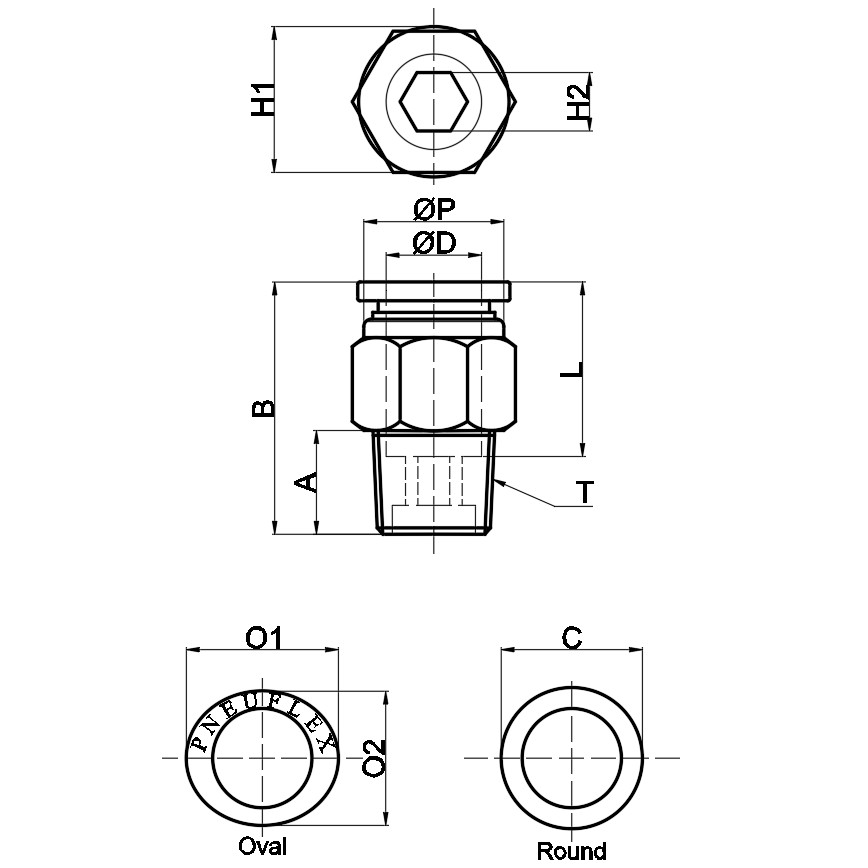

Drawing and Dimensions of PC 16-02 | Push in Fitting - Hex Male Straight Connector | 16mm O.D Tubing, R, PT, BSPT 1/4 Male Thread

Part No.	ØD	T	ØP	A	B	L	H1	H2	O1	O2	C
PC 16-02	16mm	PT, R, BSPT 1/4	23.8mm	9.5mm	35.6mm	24mm	24mm	6mm	26.5mm	24.7mm	-
